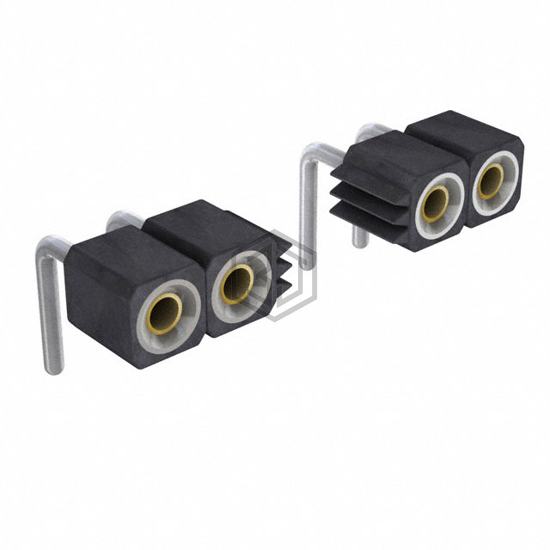

CONN SOCKET 10P 0.1 GOLD PCB R/A
801-83-010-20-002101 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Preci-Dip. CONN SOCKET 10P 0.1 GOLD PCB R/A. Key specifications: mounting type Through Hole, Right Angle, operating temperature -55°C ~ 125°C, current rating (amps) 3A, termination Solder.
In Stock: 1,263
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Socket |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Insulation Color | Black |
| Insulation Height | 0.100" (2.54mm) |
| Contact Length - Post | 0.126" (3.20mm) |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 3A |
| Voltage Rating | - |
