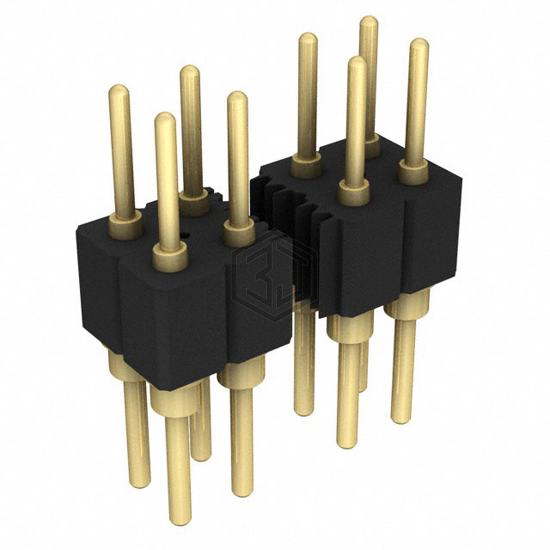

CONN HEADER VERT 60POS 2.54MM
451-80-260-00-017101 is a Rectangular Connectors - Headers, Male Pins manufactured by Preci-Dip. CONN HEADER VERT 60POS 2.54MM. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage rating 150VDC, contact material Brass.
In Stock: 6,239
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.118" (3.00mm) |
| Contact Length - Post | 0.126" (3.20mm) |
| Overall Contact Length | 1.323" (33.60mm) |
| Insulation Height | 0.110" (2.79mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A |
| Voltage Rating | 150VDC |
Submit your RFQ for 451-80-260-00-017101 and get a quote within 24 hours.
