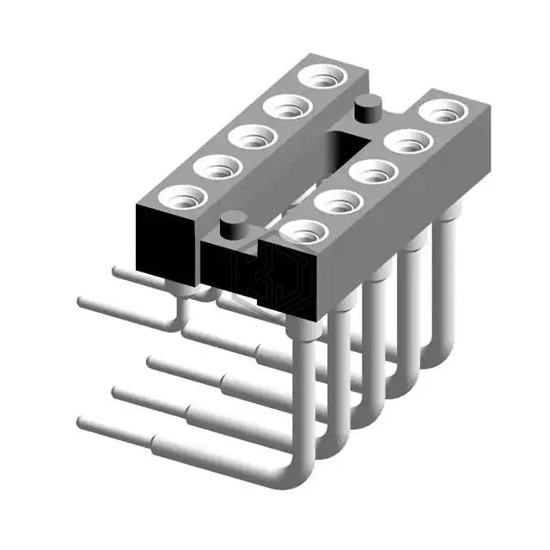

CONN IC DIP SOCKET 10POS GOLD
299-83-210-10-001101 is a Sockets for ICs, Transistors manufactured by Preci-Dip. CONN IC DIP SOCKET 10POS GOLD. Key specifications: mounting type Through Hole, Right Angle, Horizontal, operating temperature -55°C ~ 125°C, housing material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled, termination Solder.
In Stock: 6,255
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DIP, 0.2" (5.08mm) Row Spacing |
| Number of Positions or Pins (Grid) | 10 (2 x 5) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole, Right Angle, Horizontal |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | - |
| Contact Material - Post | Brass |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Operating Temperature | -55°C ~ 125°C |
Submit your RFQ for 299-83-210-10-001101 and get a quote within 24 hours.
