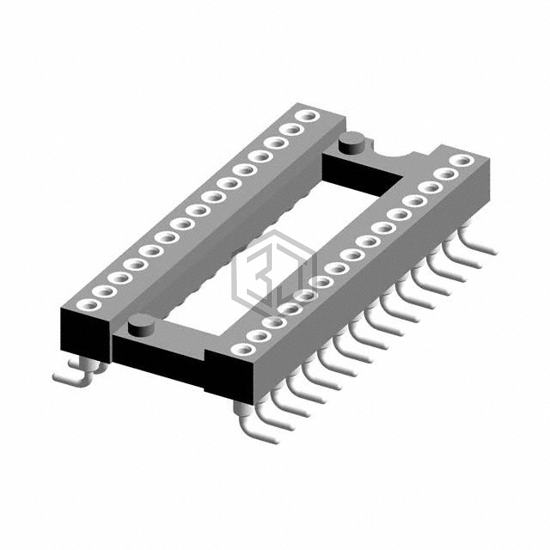

CONN IC DIP SOCKET 30POS GOLD
117-87-430-41-105101 is a Sockets for ICs, Transistors manufactured by Preci-Dip. CONN IC DIP SOCKET 30POS GOLD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, housing material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled, termination Solder.
In Stock: 1,036
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DIP, 0.4" (10.16mm) Row Spacing |
| Number of Positions or Pins (Grid) | 30 (2 x 15) |
| Pitch - Mating | 0.070" (1.78mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole |
| Features | Open Frame |
| Termination | Solder |
| Pitch - Post | 0.070" (1.78mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | - |
| Contact Material - Post | Brass |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Operating Temperature | -55°C ~ 125°C |
Submit your RFQ for 117-87-430-41-105101 and get a quote within 24 hours.
