IC GATE DRVR LOW-SIDE MODULE

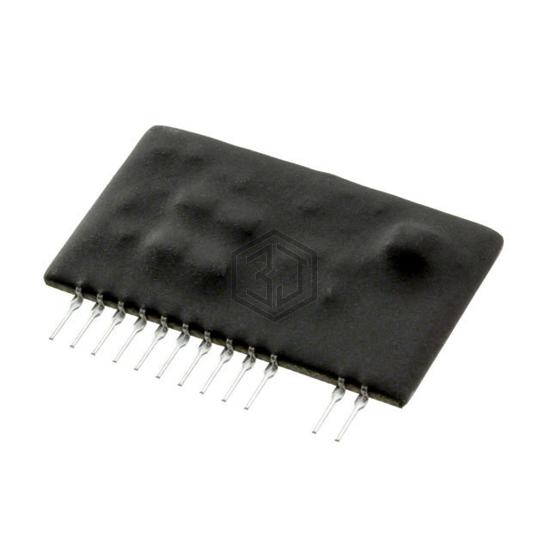

VLA542-01R is a PMIC - Gate Drivers manufactured by Powerex Inc.. IC GATE DRVR LOW-SIDE MODULE. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 70°C (TA), voltage - supply 14V ~ 17V, package / case 14-SIP Module, 12 Leads.
In Stock: 7,047
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT |
| Voltage - Supply | 14V ~ 17V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 5A, 5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 400ns, 300ns |
| Operating Temperature | -20°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 14-SIP Module, 12 Leads |
| Supplier Device Package | Module |
VLA542-01R is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VLA542-11R | Powerex Inc. | IC GATE DRVR PWR MGMT MOSFET | 100% | View |
| VLA513-01R | Powerex Inc. | IC GATE DRVR LOW-SIDE MODULE | 96% | View |
| VLA513-01 | Powerex Inc. | IC GATE DRVR LOW-SIDE MODULE | 96% | View |
| MAX4429EPA+ | Analog Devices Inc./Maxim Integrated | IC GATE DRVR LOW-SIDE 8DIP | 55% | View |
| TC4429EPA | Microchip Technology | IC GATE DRVR LOW-SIDE 8DIP | 55% | View |
| TC4420EPA | Microchip Technology | IC GATE DRVR LOW-SIDE 8DIP | 55% | View |
Submit your RFQ for VLA542-01R and get a quote within 24 hours.
