IC GATE DRVR LOW-SIDE MODULE

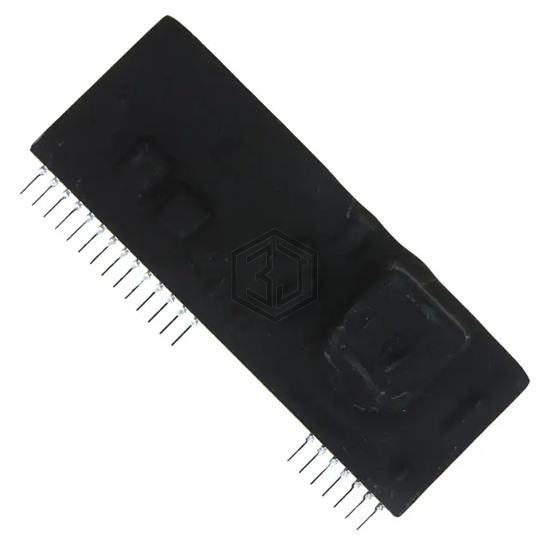

VLA502-01 is a PMIC - Gate Drivers manufactured by Powerex Inc.. IC GATE DRVR LOW-SIDE MODULE. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 60°C (TA), voltage - supply 14.2V ~ 15.8V, package / case 21-SIP Module.
In Stock: 4,664
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT |
| Voltage - Supply | 14.2V ~ 15.8V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 12A, 12A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 300ns, 300ns |
| Operating Temperature | -20°C ~ 60°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 21-SIP Module |
| Supplier Device Package | Module |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VLA500-01 | Powerex Inc. | IC GATE DRVR LOW-SIDE MODULE | 100% | View |
| VLA500K-01R | Powerex Inc. | IC GATE DRVR LOW-SIDE 21SIP | 100% | View |
| MIC4451YN | Microchip Technology | IC GATE DRVR LOW-SIDE 8DIP | 57% | View |
| MIC4452YN | Microchip Technology | IC GATE DRVR LOW-SIDE 8DIP | 57% | View |
| TC4421AVPA | Microchip Technology | IC GATE DRVR LOW-SIDE 8DIP | 54% | View |
| TC4421AVAT | Microchip Technology | IC GATE DRVR LOW-SIDE TO220-5 | 54% | View |
Submit your RFQ for VLA502-01 and get a quote within 24 hours.
