IGBT MOD 1200V 200A 1250W

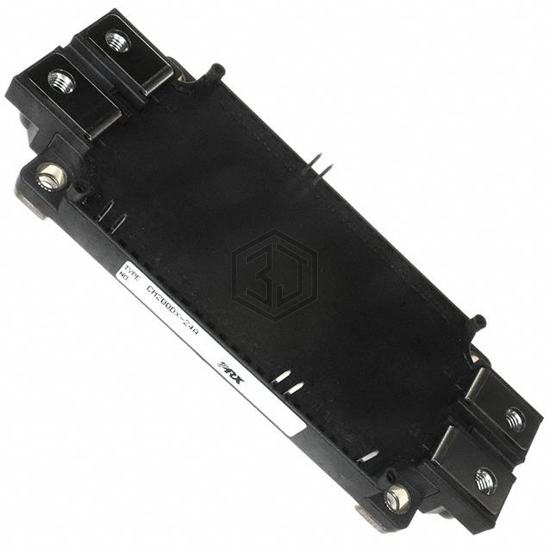

CM200DX-24A is a Transistors - IGBTs - Modules manufactured by Powerex Inc.. IGBT MOD 1200V 200A 1250W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, current - collector (ic) (max) 200 A.
In Stock: 3,076
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | - |
| Configuration | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 200 A |
| Power - Max | 1250 W |
| Vce(on) (Max) @ Vge, Ic | 2.6V @ 15V, 200A |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 35 nF @ 10 V |
| Input | Standard |
| NTC Thermistor | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | Module |
Submit your RFQ for CM200DX-24A and get a quote within 24 hours.
