IGBT MOD 1200V 100A 625W

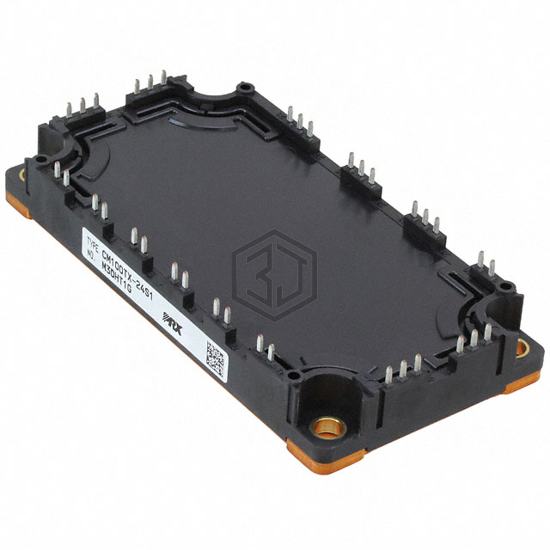

CM100TX-24S1 is a Transistors - IGBTs - Modules manufactured by Powerex Inc.. IGBT MOD 1200V 100A 625W. Key specifications: operating temperature -40°C ~ 150°C (TJ), package / case Module, current - collector (ic) (max) 100 A, power - max 625 W.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| IGBT Type | - |
| Configuration | Three Level Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 100 A |
| Power - Max | 625 W |
| Vce(on) (Max) @ Vge, Ic | 2.25V @ 15V, 100A |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 10 nF @ 10 V |
| Input | Standard |
| NTC Thermistor | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | - |
| Package / Case | Module |
| Supplier Device Package | Module |
Submit your RFQ for CM100TX-24S1 and get a quote within 24 hours.
