3J LIMITED

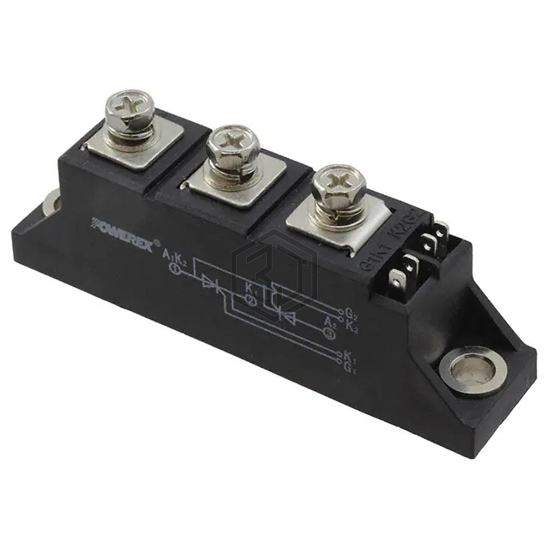

CD431690C
DUAL SCR MODULE
CD431690C is a Thyristors - SCRs - Modules manufactured by Powerex Inc.. DUAL SCR MODULE. Key specifications: operating temperature -40°C ~ 125°C (TJ), package / case Module.
In Stock: 48
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Structure | Series Connection - All SCRs |
| Number of SCRs, Diodes | 2 SCRs |
| Voltage - Off State | 1.6 kV |
| Current - On State (It (AV)) (Max) | 90 A |
| Current - On State (It (RMS)) (Max) | 141 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Current - Gate Trigger (Igt) (Max) | 100 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 2000A @ 50Hz |
| Current - Hold (Ih) (Max) | 100 mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | - |
| Package / Case | Module |
Frequently Asked Questions
CD431690C is a Thyristors - SCRs - Modules manufactured by Powerex Inc.. DUAL SCR MODULE
The operating temperature range of CD431690C is -40°C ~ 125°C (TJ).
The package type of CD431690C is Module.
