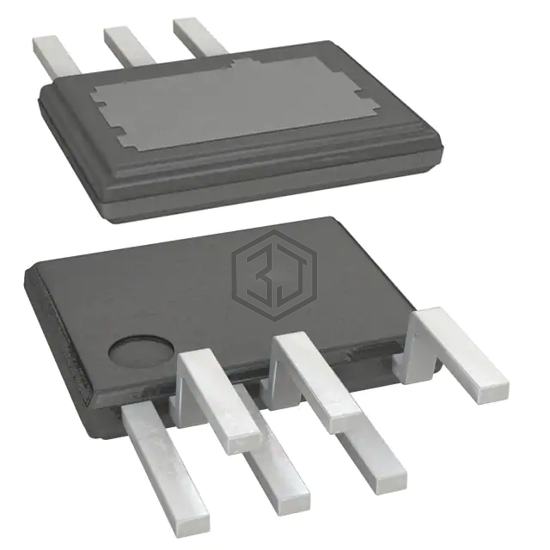

IC OFFLINE SWITCH FLYBACK 7ESIP
TOP270EG is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLINE SWITCH FLYBACK 7ESIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case 7-SSIP, 6 Leads, Exposed Pad, Formed Leads, power (watts) 190 W.
In Stock: 4,371
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 725V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 78% |
| Frequency - Switching | 66kHz, 132kHz |
| Power (Watts) | 190 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | Frequency Control |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 7-SSIP, 6 Leads, Exposed Pad, Formed Leads |
| Supplier Device Package | eSIP-7C |
| Mounting Type | Through Hole |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TFS757HG | Power Integrations | IC OFFLIN CONV MULT TOP ESIP-16B | 96% | View |
| TOP261LG | Power Integrations | IC OFFLINE SWITCH FLYBACK 7FESIP | 93% | View |
| TFS758HG | Power Integrations | IC OFFLIN CONV MULT TOP ESIP-16B | 90% | View |
| TOP250FN | Power Integrations | IC OFFLINE SW FLYBACK TO262-7C | 88% | View |
| TOP250F | Power Integrations | IC OFFLINE SW FLYBACK TO262-7C | 88% | View |
| TOP253PN | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 70% | View |
Submit your RFQ for TOP270EG and get a quote within 24 hours.
