IC OFFLINE SWITCH FLYBACK 8SMD

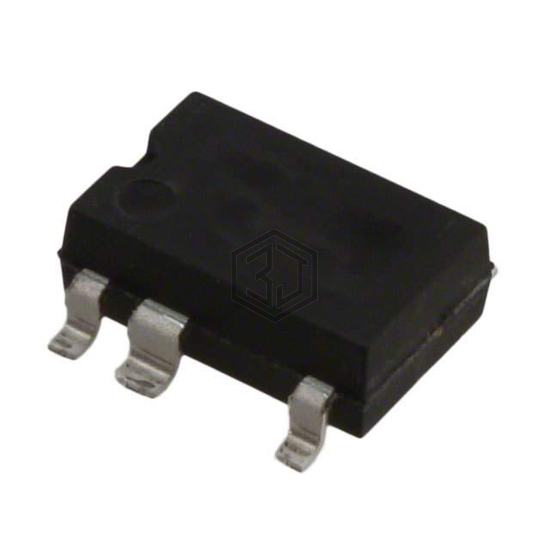

TOP256GN-TL is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLINE SWITCH FLYBACK 8SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 8-SMD (7 Leads), Gull Wing, power (watts) 34 W.
In Stock: 2,904
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 78% |
| Frequency - Switching | 66kHz |
| Power (Watts) | 34 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-SMD (7 Leads), Gull Wing |
| Supplier Device Package | SMD-8C |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNK304DG-TL | Power Integrations | IC OFFLINE SWITCH MULT TOP 8SO | 100% | View |
| TOP256GN | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SMD | 100% | View |
| LNK3294G-TL | Power Integrations | IC OFFLINE SWITCH MULT TOP 8SMD | 96% | View |
| TOP264KG-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 12ESOP | 90% | View |
| LNK562DN-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SO | 70% | View |
| LNK3694G-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SMD | 67% | View |
Submit your RFQ for TOP256GN-TL and get a quote within 24 hours.
