IC OFFLINE SWITCH FLYBACK TO263

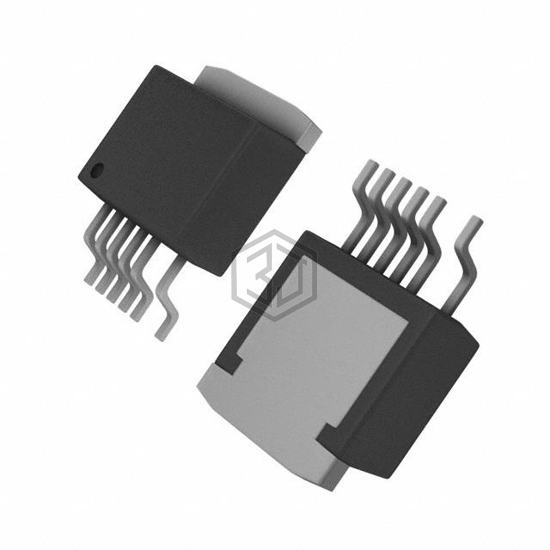

TOP247R-TL is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLINE SWITCH FLYBACK TO263. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case TO-263-7, D²Pak (6 Leads + Tab), TO-263CB, power (watts) 70 W.
In Stock: 730
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 66.5% |
| Frequency - Switching | 66kHz ~ 132kHz |
| Power (Watts) | 70 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | Frequency Control |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | TO-263-7, D²Pak (6 Leads + Tab), TO-263CB |
| Supplier Device Package | TO-263-7C |
| Mounting Type | Surface Mount |
TOP247R-TL is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNK302GN-TL | Power Integrations | IC OFFLINE SWITCH MULT TOP 8SMD | 100% | View |
| LNK304G-TL | Power Integrations | IC OFFLINE SWITCH MULT TOP 8SMD | 100% | View |
| LNK3209D-TL | Power Integrations | 600 MA (MDCM) 1000 MA (CCM) | 99% | View |
| TOP257GN | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SMD | 85% | View |
| TOP254GN-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SMD | 75% | View |
| LNK3312D-TL | Power Integrations | IC OFFLINE SWITCH MULT TOP 8SO | 70% | View |
Submit your RFQ for TOP247R-TL and get a quote within 24 hours.
