IC OFFLINE SWITCH FLYBACK 8SMD

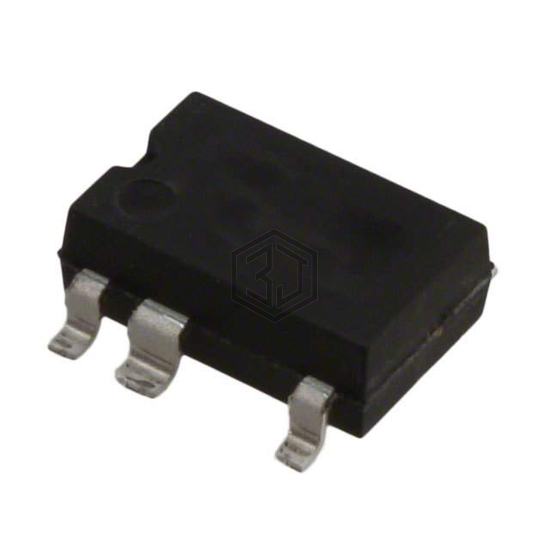

TOP246GN-TL is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLINE SWITCH FLYBACK 8SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 8-SMD (7 Leads), Gull Wing, power (watts) 34 W.
In Stock: 1,674
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 66.5% |
| Frequency - Switching | 66kHz ~ 132kHz |
| Power (Watts) | 34 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | Frequency Control |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-SMD (7 Leads), Gull Wing |
| Supplier Device Package | SMD-8B |
| Mounting Type | Surface Mount |
TOP246GN-TL is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNK304DN-TL | Power Integrations | IC OFFLINE SWITCH MULT TOP 8SO | 100% | View |
| TOP257GN-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SMD | 95% | View |
| TEA1733LT/N1,118 | NXP USA Inc. | IC OFFLINE SWITCH FLYBACK 8SO | 73% | View |
| TEA1733T/N1,118 | NXP USA Inc. | IC OFFLINE SWITCH FLYBACK 8SO | 73% | View |
| TOP271KG-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 12ESOP | 70% | View |
| LNK3314D-TL | Power Integrations | IC OFFLINE SWITCH MULT TOP 8SO | 70% | View |
Submit your RFQ for TOP246GN-TL and get a quote within 24 hours.
