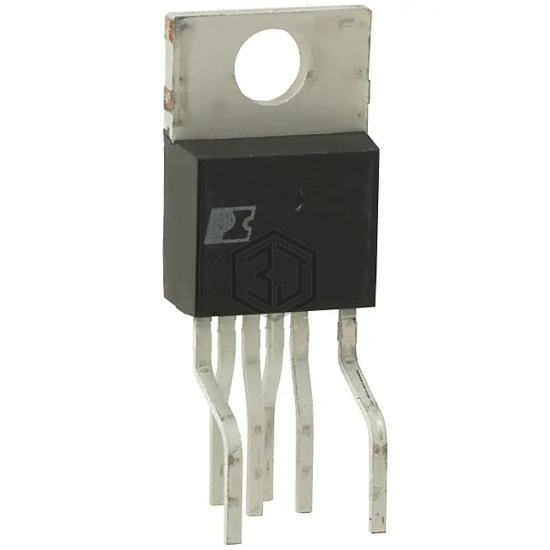

IC OFFLINE SW FLYBACK TO220-7C
TOP242YN is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLINE SW FLYBACK TO220-7C. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case TO-220-7 Formed Leads, 6 Leads, power (watts) 22 W.
In Stock: 1,473
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 66.5% |
| Frequency - Switching | 66kHz ~ 132kHz |
| Power (Watts) | 22 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | Frequency Control |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | TO-220-7 Formed Leads, 6 Leads |
| Supplier Device Package | TO-220-7C |
| Mounting Type | Through Hole |
TOP242YN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNK305PN | Power Integrations | IC OFFLINE SWITCH MULT TOP 8DIP | 100% | View |
| TOP252PN | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 90% | View |
| TOP264VG | Power Integrations | IC OFFLINE SWITCH FLYBACK 12EDIP | 88% | View |
| TOP257PN | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 83% | View |
| TOP267VG | Power Integrations | IC OFFLINE SWITCH FLYBACK 12EDIP | 81% | View |
| TOP258PG | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 79% | View |
Submit your RFQ for TOP242YN and get a quote within 24 hours.
