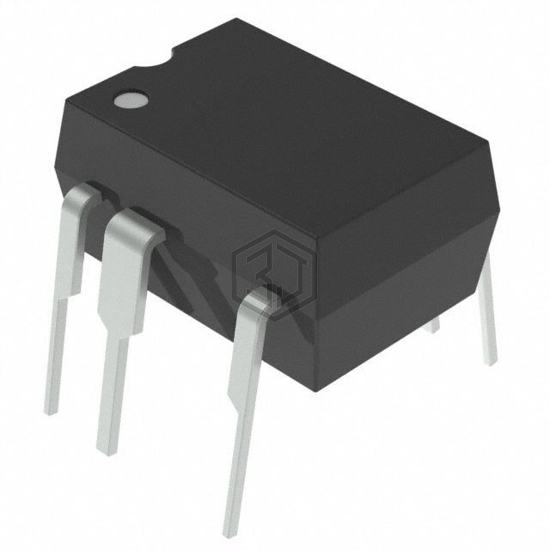

IC OFFLINE SWITCH FLYBACK 8DIP
TNY380PN is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLINE SWITCH FLYBACK 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case 8-DIP (0.300", 7.62mm), 7 Leads, power (watts) 36.5 W.
In Stock: 2,283
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 65% |
| Frequency - Switching | 132kHz ~ 264kHz |
| Power (Watts) | 36.5 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | EN |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 8-PDIP-C |
| Mounting Type | Through Hole |
TNY380PN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TNY179PN | Power Integrations | 25 W (85-265 VAC) 32 W (230 VAC) | 95% | View |
| TNY278PN | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 93% | View |
| TNY177PN | Power Integrations | 18 W (85-265 VAC) 23.5 W (230 VA | 87% | View |
| TNY276PG | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 82% | View |
| LNK363PG | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 70% | View |
| TNY274PG | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 70% | View |
Submit your RFQ for TNY380PN and get a quote within 24 hours.
