IC OFFLINE SWITCH FLYBACK 12ESOP

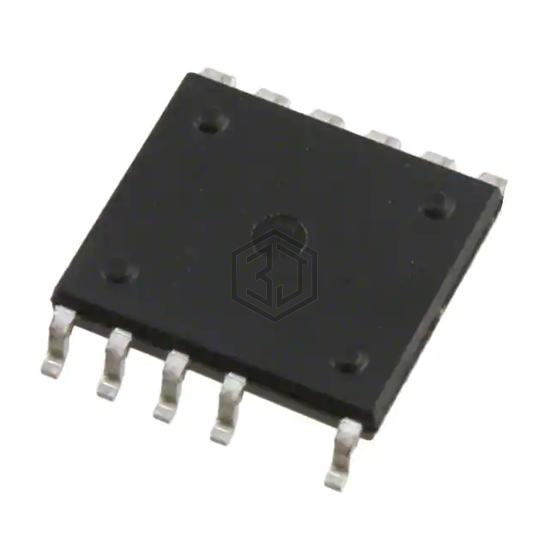

TNY284KG-TL is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLINE SWITCH FLYBACK 12ESOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 12-BESOP (0.350", 8.89mm Width), 11 Leads, Exposed Pad, power (watts) 6 W.
In Stock: 24,715
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 725V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 67% |
| Frequency - Switching | 124kHz ~ 140kHz |
| Power (Watts) | 6 W |
| Fault Protection | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit |
| Control Features | EN |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 12-BESOP (0.350", 8.89mm Width), 11 Leads, Exposed Pad |
| Supplier Device Package | 12-ESOP |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TNY284DG-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SO | 100% | View |
| TNY285DG-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SO | 90% | View |
| TNY285KG-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 12ESOP | 83% | View |
| TNY287DG-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SO | 82% | View |
| TNY288DG-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SO | 76% | View |
| TNY286DG-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SO | 70% | View |
Submit your RFQ for TNY284KG-TL and get a quote within 24 hours.
