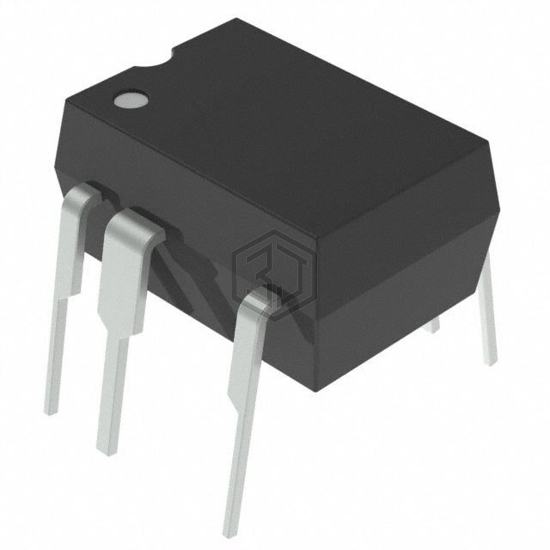

IC OFFLINE SWITCH FLYBACK 8DIP
TNY276PN is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLINE SWITCH FLYBACK 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case 8-DIP (0.300", 7.62mm), 7 Leads, power (watts) 19 W.
In Stock: 5,239
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 65% |
| Frequency - Switching | 132kHz |
| Power (Watts) | 19 W |
| Fault Protection | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit |
| Control Features | EN |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 8-PDIP-C |
| Mounting Type | Through Hole |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TNY176PG | Power Integrations | 15 W (85-265 VAC) 19 W (230 VAC) | 99% | View |
| LYT4213E2 | Power Integrations | IC OFFLINE SWITCH LED DVR 7ESIP | 98% | View |
| TNY268PN | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 95% | View |
| TNY177PG | Power Integrations | 18 W (85-265 VAC) 23.5 W (230 VA | 93% | View |
| TNY279PG | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 86% | View |
| TNY274PN | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 85% | View |
Submit your RFQ for TNY276PN and get a quote within 24 hours.
