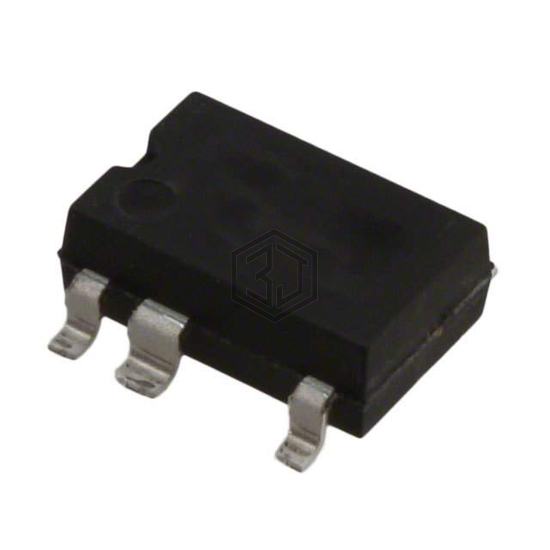

IC OFFLINE SWITCH FLYBACK 8SMD
TNY276GN is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLINE SWITCH FLYBACK 8SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 8-SMD (7 Leads), Gull Wing, power (watts) 19 W.
In Stock: 2,527
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 65% |
| Frequency - Switching | 132kHz |
| Power (Watts) | 19 W |
| Fault Protection | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit |
| Control Features | EN |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-SMD (7 Leads), Gull Wing |
| Supplier Device Package | SMD-8C |
| Mounting Type | Surface Mount |
TNY276GN is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNK364DNAU | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SO | 100% | View |
| TNY275GN-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SMD | 94% | View |
| TNY274GN-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SMD | 85% | View |
| TNY280GN-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SMD | 82% | View |
| LNK364DG-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SO | 80% | View |
| VIPER317HDTR | STMicroelectronics | IC OFFLINE SWITCH MULT TOP 16SO | 68% | View |
Submit your RFQ for TNY276GN and get a quote within 24 hours.
