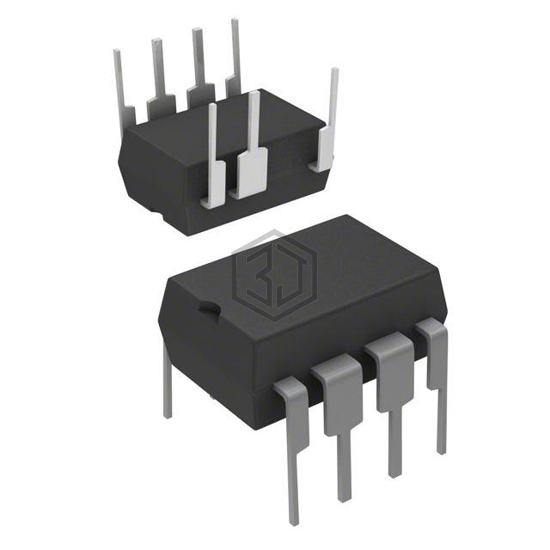

IC OFFLINE SWITCH FLYBACK 8DIP
TNY266PN is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLINE SWITCH FLYBACK 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case 8-DIP (0.300", 7.62mm), 7 Leads, power (watts) 15 W.
In Stock: 10,275
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 65% |
| Frequency - Switching | 132kHz |
| Power (Watts) | 15 W |
| Fault Protection | Current Limiting, Open Loop, Over Temperature, Short Circuit |
| Control Features | EN |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 8-PDIP-B |
| Mounting Type | Through Hole |
TNY266PN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TNY275PN | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 100% | View |
| LNK364PN | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 86% | View |
| LNK364PG | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 86% | View |
| TNY278PG | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 83% | View |
| TNY279PN | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 79% | View |
| TNY280PG | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 76% | View |
Submit your RFQ for TNY266PN and get a quote within 24 hours.
