18 W (85-265 VAC) 23.5 W (230 VA

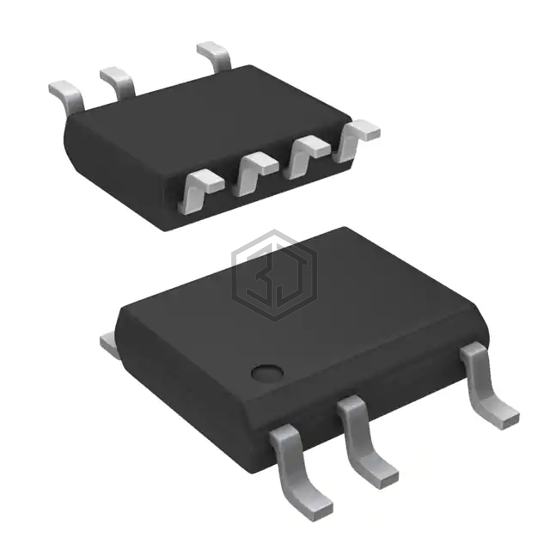

TNY177DG-TL is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. 18 W (85-265 VAC) 23.5 W (230 VA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width), 7 Leads, power (watts) 23.5 W.
In Stock: 2,500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback, Secondary Side SR |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 65% |
| Frequency - Switching | 132kHz |
| Power (Watts) | 23.5 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | EN |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | SO-8C |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ICE3GS03LJGXUMA1 | Infineon Technologies | IC OFFLINE SWITCH FLYBACK 8DSO | 99% | View |
| LNK364DNAU-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SO | 99% | View |
| TNY375GN-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SMD | 87% | View |
| TNY265G | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SMD | 78% | View |
| TNY264GN | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SMD | 73% | View |
| VIPER318LDTR | STMicroelectronics | IC OFFLINE SWITCH MULT TOP 16SO | 67% | View |
Submit your RFQ for TNY177DG-TL and get a quote within 24 hours.
