IC REG CTRLR MULT TOPOLOGY 7ESIP

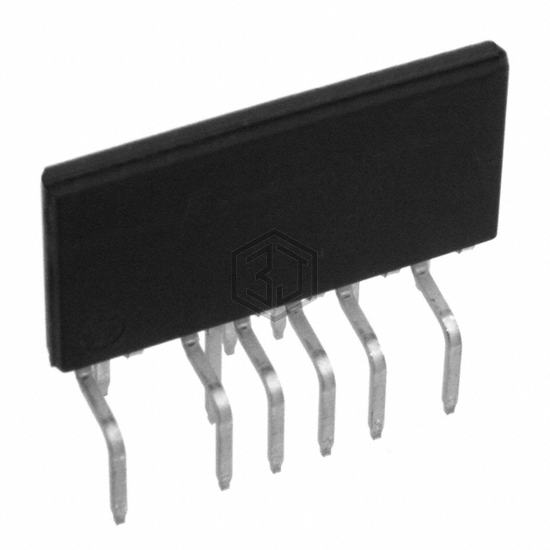

TFS7702H is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Power Integrations. IC REG CTRLR MULT TOPOLOGY 7ESIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Up to 11.5V, package / case 16-SSIP, 12 Leads, Exposed Pad, Formed Leads.
In Stock: 4,121
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Flyback, Forward Converter |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | Up to 11.5V |
| Frequency - Switching | 66kHz, 132kHz |
| Duty Cycle (Max) | 63% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable, Reset |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 16-SSIP, 12 Leads, Exposed Pad, Formed Leads |
| Supplier Device Package | eSIP-16F |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TFS7703H | Power Integrations | IC REG CTRLR MULT TOP ESIP-16F | 100% | View |
| TFS7706H | Power Integrations | IC REG CTRLR MULT TOPOLOGY 7ESIP | 100% | View |
| TFS7704H | Power Integrations | IC REG CTRLR MULT TOPOLOGY 7ESIP | 100% | View |
| TFS7705H | Power Integrations | IC REG CTRLR MULT TOPOLOGY 7ESIP | 100% | View |
| TFS7701H | Power Integrations | IC REG CTRLR MULT TOP ESIP-16F | 100% | View |
| TFS7708H | Power Integrations | IC REG CTRLR MULT TOP ESIP-16F | 100% | View |
Submit your RFQ for TFS7702H and get a quote within 24 hours.
