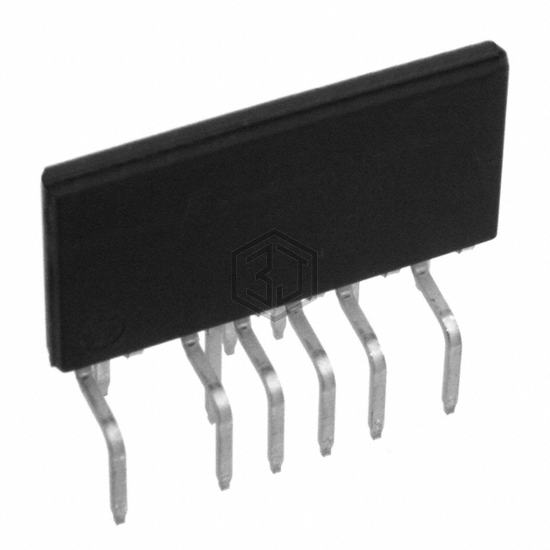

IC OFFLIN CONV MULT TOP ESIP-16B
TFS762HG is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLIN CONV MULT TOP ESIP-16B. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 11.1V ~ 13.4V, package / case 16-SSIP, 12 Leads, Exposed Pad, Formed Leads.
In Stock: 5,796
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 530V, 725V |
| Topology | Flyback, Forward |
| Voltage - Start Up | 12.1 V |
| Voltage - Supply (Vcc/Vdd) | 11.1V ~ 13.4V |
| Duty Cycle | 70% |
| Frequency - Switching | 66kHz |
| Power (Watts) | 360 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit |
| Control Features | EN |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 16-SSIP, 12 Leads, Exposed Pad, Formed Leads |
| Supplier Device Package | eSIP-16B |
| Mounting Type | Through Hole |
TFS762HG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNK306PN | Power Integrations | IC OFFLINE SWITCH MULT TOP 8DIP | 95% | View |
| TOP268EG | Power Integrations | IC OFFLINE SWITCH FLYBACK 7ESIP | 72% | View |
| TOP258PG | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 67% | View |
| LNK562PG | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 67% | View |
| LNK562PN | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 67% | View |
| TOP266EG | Power Integrations | IC OFFLINE SWITCH FLYBACK 7ESIP | 66% | View |
Submit your RFQ for TFS762HG and get a quote within 24 hours.
