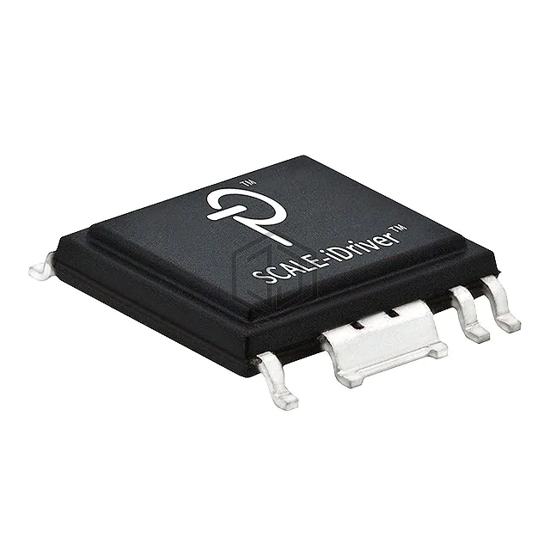

IC GATE DRV HI/LO SIDE ESOP-R16B
SID1183K-TL is a PMIC - Gate Drivers manufactured by Power Integrations. IC GATE DRV HI/LO SIDE ESOP-R16B. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.75V ~ 5.25V, package / case 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads.
In Stock: 9,883
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | High-Side or Low-Side |
| Channel Type | Single |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 4.75V ~ 5.25V |
| Logic Voltage - VIL, VIH | 0.5V, 3.3V |
| Current - Peak Output (Source, Sink) | 8A, 48A |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 465ns, 460ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads |
| Supplier Device Package | eSOP-R16B |
SID1183K-TL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SID1183K | Power Integrations | IC GATE DRV HI/LO SIDE ESOP-R16B | 100% | View |
| IXDD408YI | IXYS | IC GATE DRVR LOW-SIDE TO263 | 65% | View |
| NCD5702DR2G | onsemi | IC GATE DRVR HALF-BRIDGE 16SOIC | 64% | View |
| TC4422VMF713 | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 63% | View |
| NCV5707BDR2G | onsemi | ISOLATED HIGH CURRENT GATE DRIVE | 61% | View |
| IX4351NE | IXYS Integrated Circuits Division | MOSFET IGBT SIC DRIVER 9A | 52% | View |
Submit your RFQ for SID1183K-TL and get a quote within 24 hours.
