8A, 1200V REINFORCED ISOLATION,

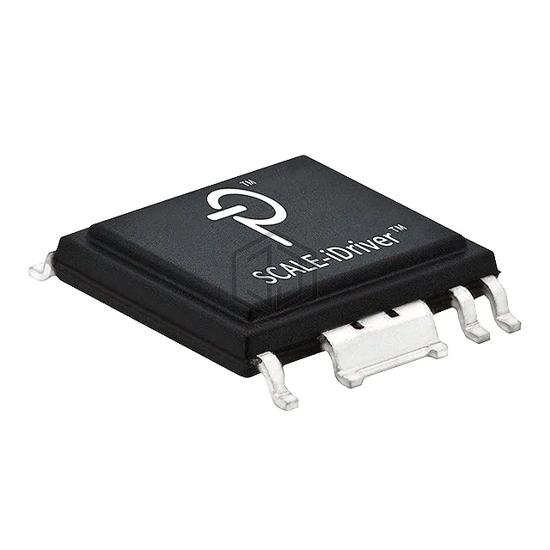

SID1182KQ is a Isolators - Gate Drivers manufactured by Power Integrations. 8A, 1200V REINFORCED ISOLATION,. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads.
In Stock: 392
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 50kV/µs (Typ) |
| Propagation Delay tpLH / tpHL (Max) | 340ns, 330ns |
| Pulse Width Distortion (Max) | - |
| Rise / Fall Time (Typ) | 150ns, 150ns |
| Current - Output High, Low | 3.6A, 4A |
| Current - Peak Output | 8A |
| Voltage - Forward (Vf) (Typ) | - |
| Current - DC Forward (If) (Max) | - |
| Voltage - Output Supply | 22V ~ 28V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads |
| Supplier Device Package | eSOP-R16B |
| Approval Agency | - |
