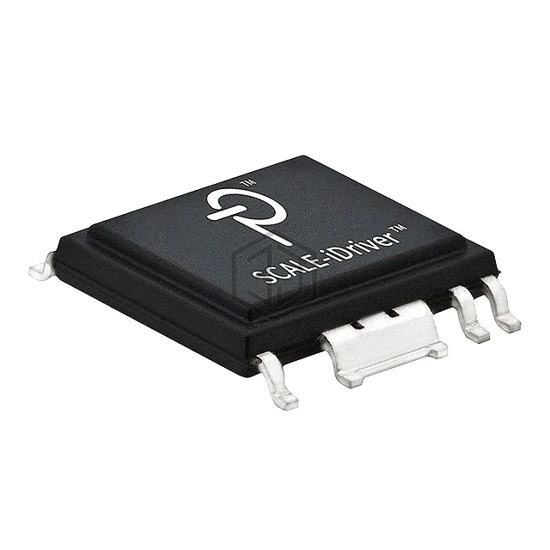

DGTL ISO 5KV GATE DRVR ESOP-R16B
SID1182K is a Isolators - Gate Drivers manufactured by Power Integrations. DGTL ISO 5KV GATE DRVR ESOP-R16B. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | - |
| Propagation Delay tpLH / tpHL (Max) | 340ns, 330ns |
| Pulse Width Distortion (Max) | - |
| Rise / Fall Time (Typ) | 90ns, 81ns |
| Current - Output High, Low | 3.6A, 4A |
| Current - Peak Output | 8A |
| Voltage - Forward (Vf) (Typ) | - |
| Current - DC Forward (If) (Max) | - |
| Voltage - Output Supply | 22V ~ 28V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads |
| Supplier Device Package | eSOP-R16B |
| Approval Agency | - |
Submit your RFQ for SID1182K and get a quote within 24 hours.
