DGTL ISO GATE DRVR

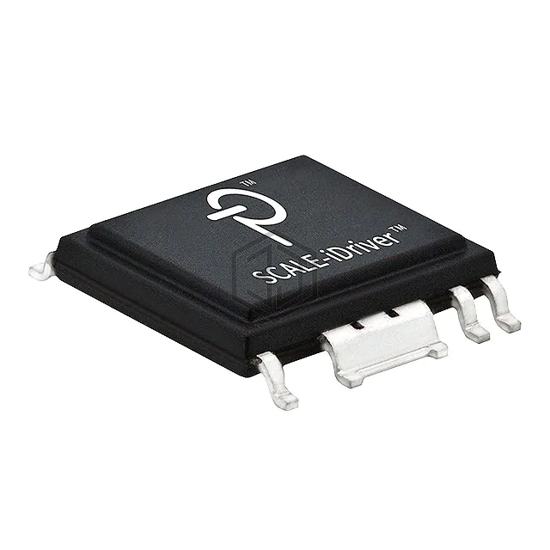

SID1102K-TL is a Isolators - Gate Drivers manufactured by Power Integrations. DGTL ISO GATE DRVR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads, approval agency VDE.
In Stock: 939
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 1000Vrms |
| Common Mode Transient Immunity (Min) | 100kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 350ns, 350ns |
| Pulse Width Distortion (Max) | - |
| Rise / Fall Time (Typ) | 29ns, 14ns |
| Current - Output High, Low | 5A, 5A |
| Current - Peak Output | - |
| Voltage - Forward (Vf) (Typ) | - |
| Current - DC Forward (If) (Max) | - |
| Voltage - Output Supply | 22V ~ 28V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads |
| Supplier Device Package | eSOP-R16B |
| Approval Agency | VDE |
Submit your RFQ for SID1102K-TL and get a quote within 24 hours.
