IC OFFLINE SWITCH FLYBACK 12EDIP

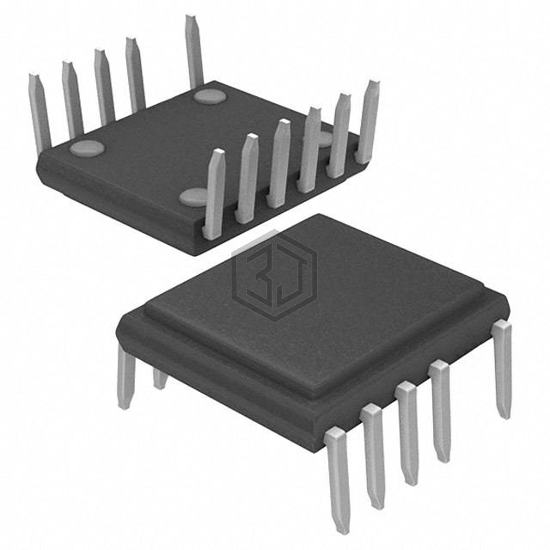

LNK6765V is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLINE SWITCH FLYBACK 12EDIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case 12-SDIP (0.412", 10.46mm), 11 Leads, Exposed Pad, power (watts) 30 W.
In Stock: 9,660
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 64% |
| Frequency - Switching | 120kHz ~ 136kHz |
| Power (Watts) | 30 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 12-SDIP (0.412", 10.46mm), 11 Leads, Exposed Pad |
| Supplier Device Package | eDIP-12 |
| Mounting Type | Through Hole |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNK6665V | Power Integrations | IC OFFLINE SWITCH FLYBACK 12EDIP | 100% | View |
| LNK6775V | Power Integrations | IC OFFLINE SWITCH FLYBACK 12EDIP | 99% | View |
| LNK6764V | Power Integrations | IC OFFLINE SWITCH FLYBACK 12EDIP | 98% | View |
| LNK6763E | Power Integrations | IC OFFLINE SWITCH FLYBACK 7ESIP | 96% | View |
| LNK6663E | Power Integrations | IC OFFLINE SWITCH FLYBACK 7ESIP | 96% | View |
| LNK6767V | Power Integrations | IC OFFLINE SWITCH FLYBACK 12EDIP | 91% | View |
Submit your RFQ for LNK6765V and get a quote within 24 hours.
