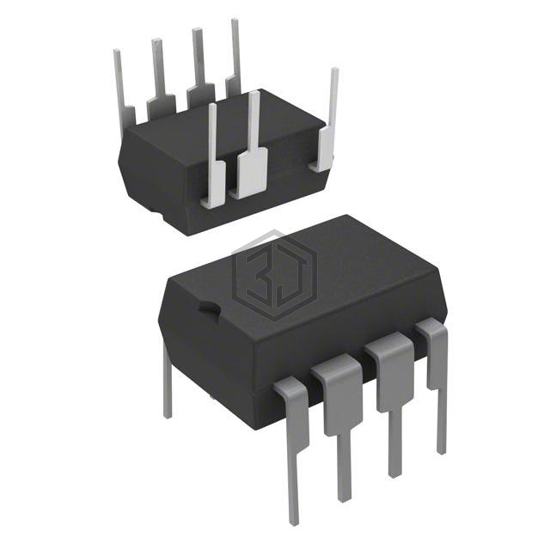

IC OFFLINE SWITCH FLYBACK 8DIP
LNK564PN is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLINE SWITCH FLYBACK 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case 8-DIP (0.300", 7.62mm), 7 Leads, power (watts) 3 W.
In Stock: 1,902
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 70% |
| Frequency - Switching | 100kHz |
| Power (Watts) | 3 W |
| Fault Protection | Current Limiting, Open Loop, Over Temperature, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 8-PDIP-B |
| Mounting Type | Through Hole |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCP1201P100G | onsemi | IC OFFLINE SWITCH FLYBACK 8DIP | 94% | View |
| NCP1201P100 | onsemi | IC OFFLINE SWITCH FLYBACK 8DIP | 94% | View |
| ICE3AR4780CJZXKLA1 | Infineon Technologies | IC OFFLINE SWITCH FLYBACK 7DIP | 68% | View |
| ICE3AR0680JZXKLA1 | Infineon Technologies | IC OFFLINE SWITCH FLYBACK 7DIP | 68% | View |
| NCP11184A100PG | onsemi | IC OFFLINE SWITCH FLYBACK 7DIP | 68% | View |
| ICE3AR2280CJZXKLA1 | Infineon Technologies | IC OFFLINE SWITCH FLYBACK 7DIP | 68% | View |
Submit your RFQ for LNK564PN and get a quote within 24 hours.
