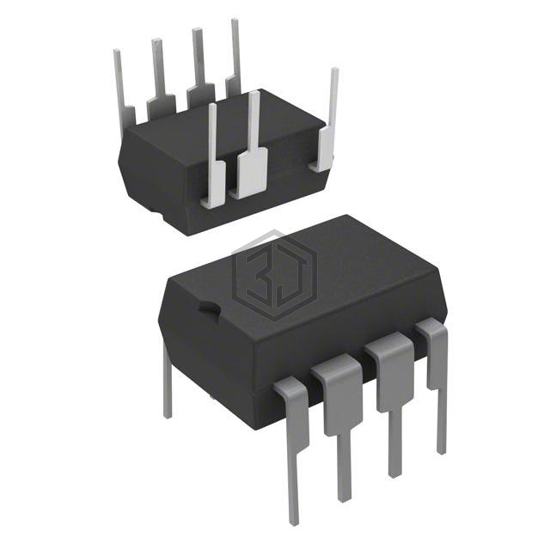

IC OFFLINE SWITCH FLYBACK 8DIP
LNK563PG is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLINE SWITCH FLYBACK 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case 8-DIP (0.300", 7.62mm), 7 Leads, power (watts) 2.5 W.
In Stock: 5,610
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 70% |
| Frequency - Switching | 83kHz |
| Power (Watts) | 2.5 W |
| Fault Protection | Current Limiting, Open Loop, Over Temperature, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 8-PDIP-B |
| Mounting Type | Through Hole |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNK563PN | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 100% | View |
| TOP209P | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 86% | View |
| TOP209PN | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 86% | View |
| LYT2004E | Power Integrations | IC OFFLINE SWITCH FLYBACK 7ESIP | 68% | View |
| IW1830-00 | Renesas Electronics Corporation | IC OFFLINE SWITCH FLYBACK 7DIP | 68% | View |
| TOP221P | Power Integrations | IC OFFLINE SWITCH MULT TOP 8DIP | 62% | View |
Submit your RFQ for LNK563PG and get a quote within 24 hours.
