IC OFFLINE SWITCH MULT TOP 8SO

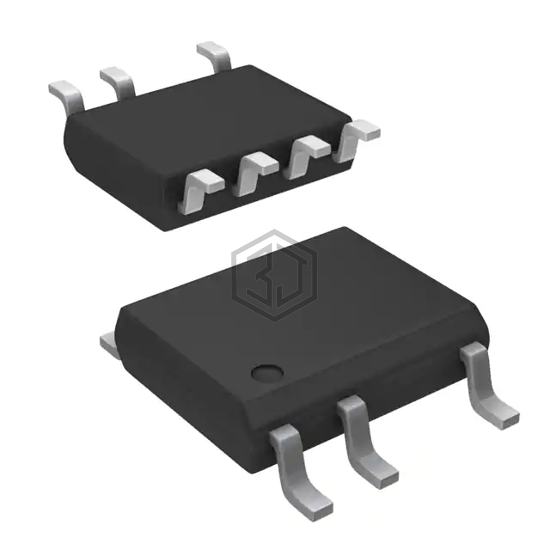

LNK3302D-TL is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLINE SWITCH MULT TOP 8SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width), 7 Leads, power (watts) 3 W.
In Stock: 9,944
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 725V |
| Topology | Buck, Buck-Boost, Flyback |
| Voltage - Start Up | 18 V |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 69% |
| Frequency - Switching | 66kHz |
| Power (Watts) | 3 W |
| Fault Protection | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit |
| Control Features | EN, Soft Start |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | SO-8C |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNK3208G-TL | Power Integrations | 485 MA (MDCM) 775 MA (CCM) | 100% | View |
| LNK305DN-TL | Power Integrations | IC OFFLINE SWITCH MULT TOP 8SO | 99% | View |
| LNK3316D-TL | Power Integrations | IC OFFLINE SWITCH MULT TOP 8SO | 75% | View |
| TOP267KG-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 12ESOP | 70% | View |
| TOP255GN-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SMD | 70% | View |
| TOP269KG-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 12ESOP | 70% | View |
Submit your RFQ for LNK3302D-TL and get a quote within 24 hours.
