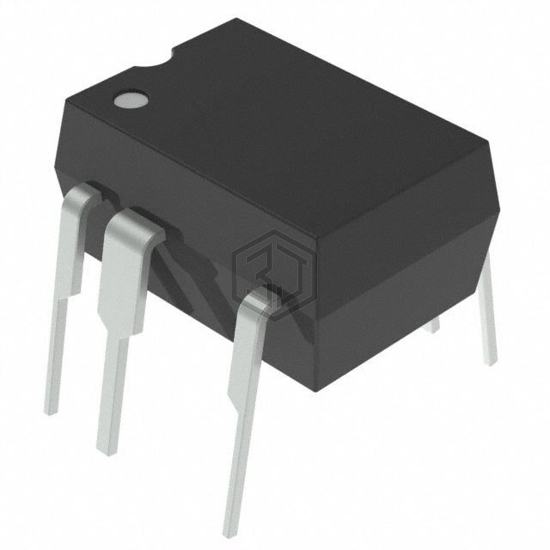

IC OFFLINE SWITCH MULT TOP 8DIP
LNK3294P is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLINE SWITCH MULT TOP 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case 8-DIP (0.300", 7.62mm), 7 Leads, frequency - switching 66kHz.
In Stock: 123
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 900V |
| Topology | Buck, Buck-Boost, Flyback |
| Voltage - Start Up | 470 mV |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 68% |
| Frequency - Switching | 66kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | EN, Soft Start |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 8-PDIP-C |
| Mounting Type | Through Hole |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TOP264VG | Power Integrations | IC OFFLINE SWITCH FLYBACK 12EDIP | 96% | View |
| TOP257PN | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 96% | View |
| TOP267VG | Power Integrations | IC OFFLINE SWITCH FLYBACK 12EDIP | 96% | View |
| TOP271VG | Power Integrations | IC OFFLINE SWITCH FLYBACK 12EDIP | 96% | View |
| TOP252PN | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 96% | View |
| TOP258YN | Power Integrations | IC OFFLINE SW FLYBACK TO220-7C | 96% | View |
Submit your RFQ for LNK3294P and get a quote within 24 hours.
