IC LLC CTRL MFET 170W ESIP16C

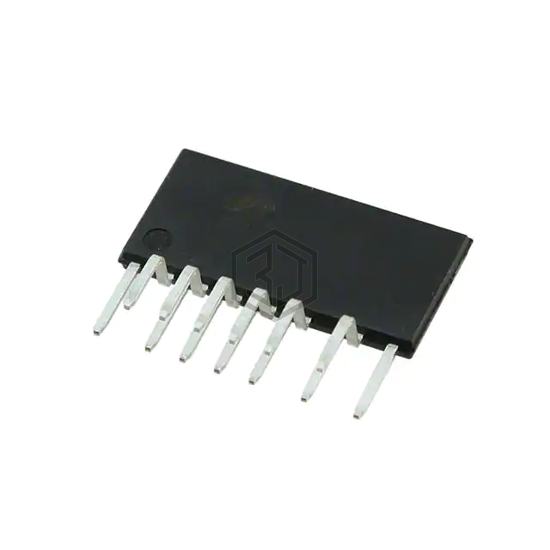

LCS701HG is a PMIC - Full, Half-Bridge Drivers manufactured by Power Integrations. IC LLC CTRL MFET 170W ESIP16C. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 11.4V ~ 15V, package / case 16-SSIP, 13 Leads, Exposed Pad, Formed Leads.
In Stock: 1,268
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge |
| Applications | General Purpose |
| Interface | On/Off |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | 1Ohm |
| Current - Output / Channel | - |
| Current - Peak Output | 7.7A |
| Voltage - Supply | 11.4V ~ 15V |
| Voltage - Load | 11.4V ~ 15V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Auto Restart, Slew Rate Controlled |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO |
| Mounting Type | Through Hole |
| Package / Case | 16-SSIP, 13 Leads, Exposed Pad, Formed Leads |
| Supplier Device Package | eSIP-16J |
Submit your RFQ for LCS701HG and get a quote within 24 hours.
