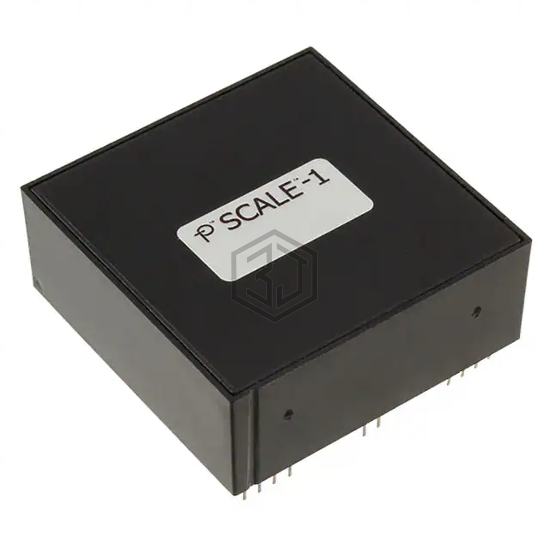

IC GATE DRVR HI/LOW SIDE MODULE
IGD515EI is a PMIC - Gate Drivers manufactured by Power Integrations. IC GATE DRVR HI/LOW SIDE MODULE. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), voltage - supply 12V ~ 16V, package / case Module.
In Stock: 8,409
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Driven Configuration | High-Side or Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply | 12V ~ 16V |
| Logic Voltage - VIL, VIH | 0.9V, 3.8V |
| Current - Peak Output (Source, Sink) | 15A, 15A |
| Input Type | - |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 40ns, 40ns |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | Module |
| Supplier Device Package | Module |
IGD515EI is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IGD515EI-34 | Power Integrations | IC GATE DRVR HI/LOW SIDE MODULE | 100% | View |
| IGD616 | Power Integrations | IC GATE DRVR HI/LOW SIDE MODULE | 86% | View |
| IXDD614CI | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE TO220-5 | 80% | View |
| IXDI614PI | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE 8DIP | 80% | View |
| IXDE514PI | IXYS | IC GATE DRVR LOW-SIDE 8DIP | 80% | View |
| IXDN514PI | IXYS | IC GATE DRVR LOW-SIDE 8DIP | 80% | View |
Submit your RFQ for IGD515EI and get a quote within 24 hours.
