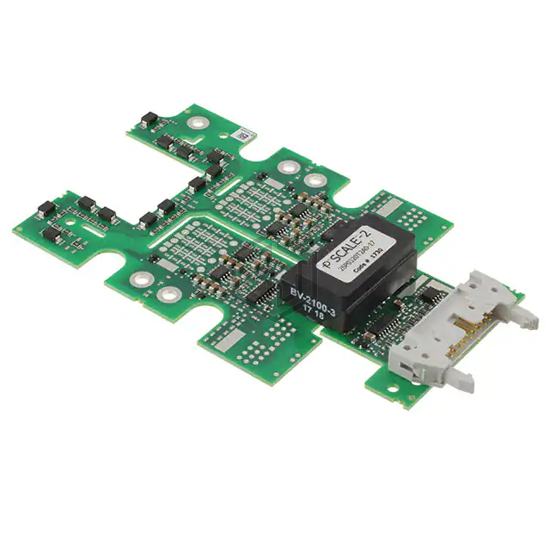

IC GATE DRVR HALF-BRIDGE MODULE
2SP0320T2A0-12 is a PMIC - Gate Drivers manufactured by Power Integrations. IC GATE DRVR HALF-BRIDGE MODULE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 14.5V ~ 15.5V, package / case Module.
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT |
| Voltage - Supply | 14.5V ~ 15.5V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 20A, 20A |
| Input Type | - |
| High Side Voltage - Max (Bootstrap) | 1200 V |
| Rise / Fall Time (Typ) | 7ns, 25ns |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | Module |
| Supplier Device Package | Module |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 2SP0320T2B0-12 | Power Integrations | IC GATE DRVR HALF-BRIDGE MODULE | 100% | View |
| 2SP0320V2A0-12 | Power Integrations | IC GATE DRVR HALF-BRIDGE MODULE | 100% | View |
| 2SP0320T2C0-12 | Power Integrations | IC GATE DRVR HALF-BRIDGE MODULE | 100% | View |
| 2SP0320T2A0-17 | Power Integrations | IC GATE DRVR HALF-BRIDGE MODULE | 96% | View |
| 2SP0320V2A0-17 | Power Integrations | IC GATE DRVR HALF-BRIDGE MODULE | 96% | View |
| 2SP0320T2C0-17 | Power Integrations | IC GATE DRVR HALF-BRIDGE MODULE | 96% | View |
Submit your RFQ for 2SP0320T2A0-12 and get a quote within 24 hours.
