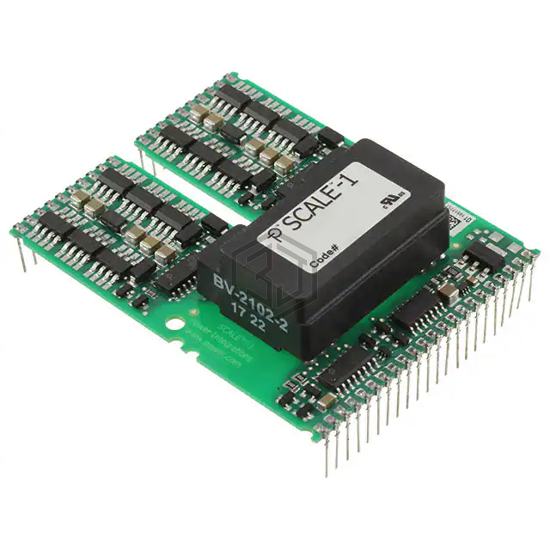

IC GATE DRVR HALF-BRIDGE MODULE
2SD315AI UL is a PMIC - Gate Drivers manufactured by Power Integrations. IC GATE DRVR HALF-BRIDGE MODULE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 15V, package / case Module.
In Stock: 8,262
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Driven Configuration | Half-Bridge |
| Channel Type | - |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply | 15V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 18A, 18A |
| Input Type | - |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | Module |
| Supplier Device Package | Module |
2SD315AI UL is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 2SD300C17A2 | Power Integrations | IC GATE DRVR HALF-BRIDGE MODULE | 88% | View |
| 2SD300C17A3 | Power Integrations | IC GATE DRVR HALF-BRIDGE MODULE | 88% | View |
| 2SD106AI-17 UL | Power Integrations | IC GATE DRVR HALF-BRIDGE MODULE | 77% | View |
| 2SD106AI-17 UC | Power Integrations | IC GATE DRVR HALF-BRIDGE MODULE | 77% | View |
Submit your RFQ for 2SD315AI UL and get a quote within 24 hours.
