DC DC CONVERTER +/-15V 1.8W

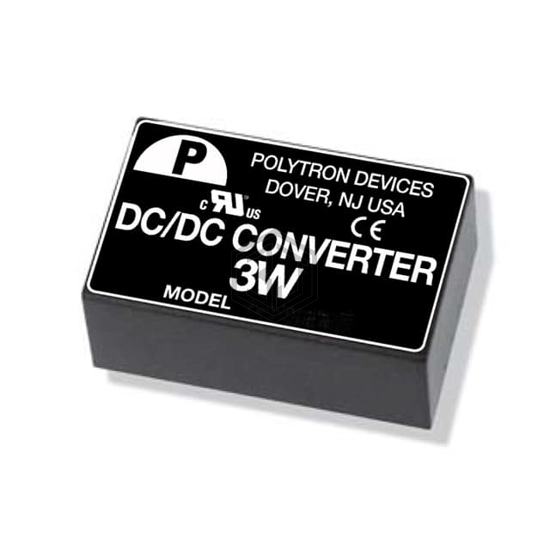

TW1.8-24-15 is a DC DC Converters manufactured by Polytron. DC DC CONVERTER +/-15V 1.8W. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 71°C, package / case 24-DIP Module, 12 Leads, current - output (max) 60mA, 60mA.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 22.8V |
| Voltage - Input (Max) | 25.2V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 60mA, 60mA |
| Power (Watts) | 1.8 W |
| Voltage - Isolation | 500 V |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -25°C ~ 71°C |
| Efficiency | 55% |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 12 Leads |
| Size / Dimension | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for TW1.8-24-15 and get a quote within 24 hours.
