DC DC CONVERTER +/-15V 2.25W

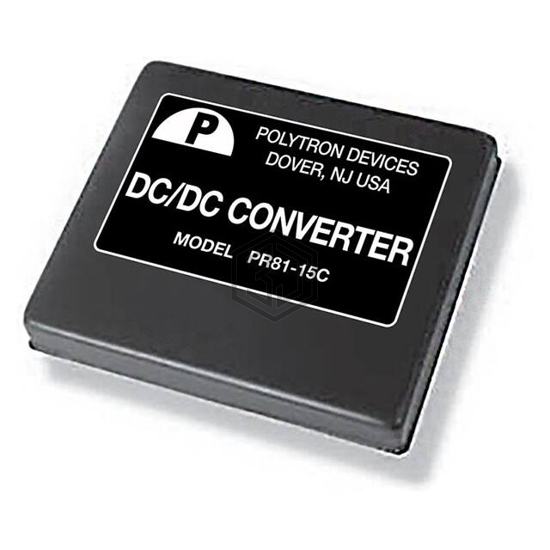

PR81-15C is a DC DC Converters manufactured by Polytron. DC DC CONVERTER +/-15V 2.25W. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 71°C, package / case 5-DIP Module, current - output (max) 150mA, 150mA.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 150mA, 150mA |
| Power (Watts) | 2.25 W |
| Voltage - Isolation | 500 V |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -25°C ~ 71°C |
| Efficiency | 65% |
| Mounting Type | Through Hole |
| Package / Case | 5-DIP Module |
| Size / Dimension | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for PR81-15C and get a quote within 24 hours.
