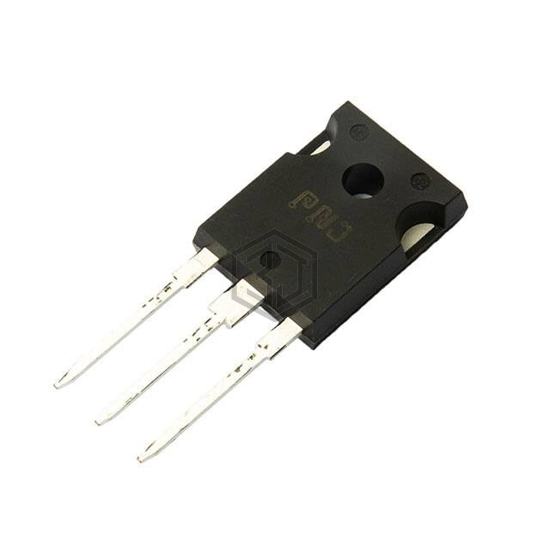

SICFET N-CH 650V 27A TO-247-3
P3M06120K3 is a Transistors - FETs, MOSFETs - Single manufactured by PN Junction Semiconductor. SICFET N-CH 650V 27A TO-247-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3.
In Stock: 90
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 27A |
| Drive Voltage (Max Rds On, Min Rds On) | 15V |
| Rds On (Max) @ Id, Vgs | 158mOhm @ 10A, 15V |
| Vgs(th) (Max) @ Id | 2.2V @ 5mA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | +20V, -8V |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| FET Feature | - |
| Power Dissipation (Max) | 131W |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247-3L |
| Package / Case | TO-247-3 |
Submit your RFQ for P3M06120K3 and get a quote within 24 hours.
