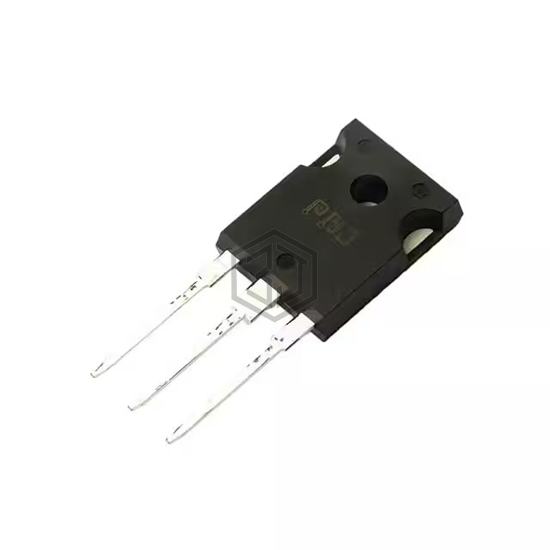

SICFET N-CH 650V 68A TO247-3
P3M06040K3 is a Transistors - FETs, MOSFETs - Single manufactured by PN Junction Semiconductor. SICFET N-CH 650V 68A TO247-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3.
In Stock: 138
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 68A |
| Drive Voltage (Max Rds On, Min Rds On) | 15V |
| Rds On (Max) @ Id, Vgs | 50mOhm @ 40A, 15V |
| Vgs(th) (Max) @ Id | 2.4V @ 7.5mA (Typ) |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | +20V, -8V |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| FET Feature | - |
| Power Dissipation (Max) | 254W |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247-3L |
| Package / Case | TO-247-3 |
