STANDARD SMD REED SWITCH PITCH 1

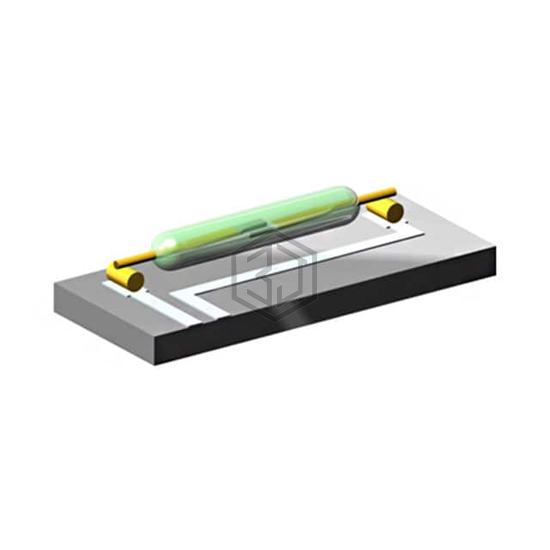

PMC-1401T1015 is a Magnetic, Reed Switches manufactured by PIC GmbH. STANDARD SMD REED SWITCH PITCH 1. Key specifications: mounting type Surface Mount, operating temperature -60°C ~ 155°C, termination style Axial, power - rated 10W.
In Stock: 8,700
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Glass Body Reed |
| Circuit | SPST-NO |
| Operate Range | 10 ~ 15AT |
| Release Range | 5 ~ 20AT |
| Current - Switching | 1A (AC/DC) |
| Voltage - Switching AC | 140 V |
| Voltage - Switching DC | 200 V |
| Power - Rated | 10W |
| Operate Time | 0.4 ms |
| Release Time | 0.5 ms |
| Mounting Type | Surface Mount |
| Termination Style | Axial |
| Length - Overall | 0.768" (19.50mm) |
| Size - Body | 0.559" L x 0.098" W x 0.118" H (14.20mm x 2.50mm x 3.00mm) |
| Height Above Board | - |
| Operating Temperature | -60°C ~ 155°C |
| Capacitance | 0.5 pF |
| Current - Carry | 1.2A (AC/DC) |
Submit your RFQ for PMC-1401T1015 and get a quote within 24 hours.
