STANDARD SMD REED SWITCH PITCH 1

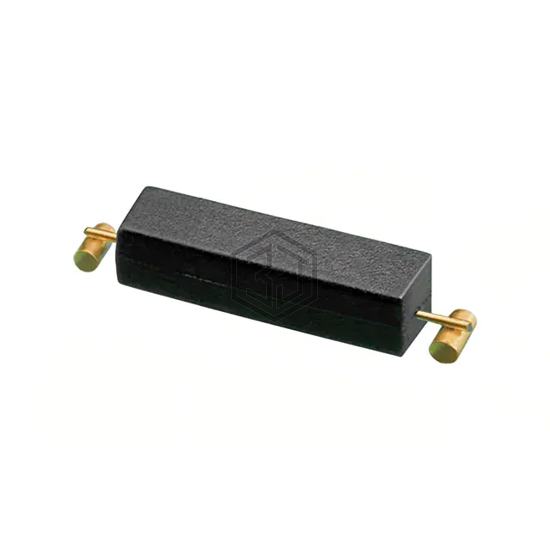

PMC-0701TH1015 is a Magnetic, Reed Switches manufactured by PIC GmbH. STANDARD SMD REED SWITCH PITCH 1. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, termination style Axial, power - rated 10W.
In Stock: 1,978
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded Body Reed |
| Circuit | SPST-NO |
| Operate Range | 10 ~ 15AT |
| Release Range | 4AT |
| Current - Switching | 500mA (AC/DC) |
| Voltage - Switching AC | 120 V |
| Voltage - Switching DC | 150 V |
| Power - Rated | 10W |
| Operate Time | 0.3 ms |
| Release Time | 0.1 ms |
| Mounting Type | Surface Mount |
| Termination Style | Axial |
| Length - Overall | 0.492" (12.50mm) |
| Size - Body | 0.335" L x 0.110" W x 0.098" H (8.50mm x 2.80mm x 2.50mm) |
| Height Above Board | - |
| Operating Temperature | -40°C ~ 125°C |
| Capacitance | - |
| Current - Carry | 700mA (AC/DC) |
Submit your RFQ for PMC-0701TH1015 and get a quote within 24 hours.
