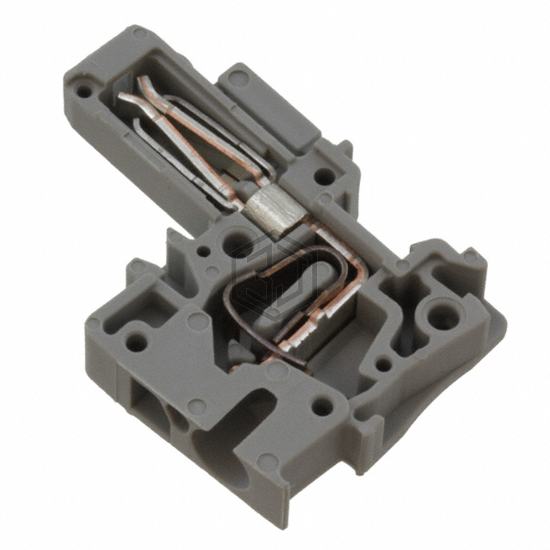

TERM BLOCK PLUG 1POS 90DEG
3041053 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by Phoenix Contact. TERM BLOCK PLUG 1POS 90DEG. Key specifications: mounting type Free Hanging (In-Line), color Gray, termination style Screwless - Spring Cage, Tension Clamp, number of positions 1.
In Stock: 52
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 1 |
| Positions Per Level | 1 |
| Number of Levels | 1 |
| Pitch | - |
| Header Orientation | - |
| Plug Wire Entry | 90° |
| Termination Style | Screwless - Spring Cage, Tension Clamp |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 24A |
| Voltage - IEC | 500 V |
| Current - UL | 20 A |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG | 12-26 AWG |
| Wire Gauge or Range - mm² | 0.08-4mm² |
| Color | Gray |
| Operating Temperature | - |
| Contact Mating Finish | - |
| Features | Interlocking (Side) |
Submit your RFQ for 3041053 and get a quote within 24 hours.
