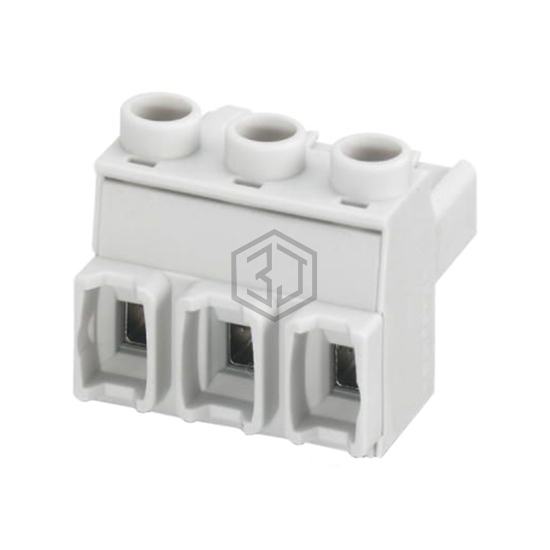

TERM BLOCK PLUG 3POS STR 7.25MM
2199553 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by Phoenix Contact. TERM BLOCK PLUG 3POS STR 7.25MM. Key specifications: mounting type Free Hanging (In-Line), color Gray, termination style Screw - Rising Cage Clamp, number of positions 3.
In Stock: 107
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 3 |
| Positions Per Level | 3 |
| Number of Levels | 1 |
| Pitch | 0.285" (7.25mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screw - Rising Cage Clamp |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 16A |
| Voltage - IEC | 1 kV |
| Current - UL | 16 A |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG | 12-24 AWG |
| Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Color | Gray |
| Operating Temperature | - |
| Contact Mating Finish | - |
| Features | Retention Latches (Non-Wire Side) |
Submit your RFQ for 2199553 and get a quote within 24 hours.
