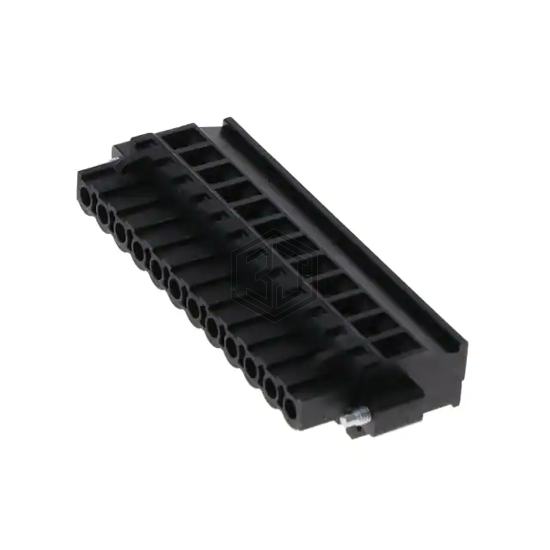

TERM BLOCK PLUG 12POS 5.08MM
1921832 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by Phoenix Contact. TERM BLOCK PLUG 12POS 5.08MM. Key specifications: mounting type Free Hanging (In-Line), color Black, termination style Screw - Rising Cage Clamp, number of positions 12.
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 12 |
| Positions Per Level | 12 |
| Number of Levels | 1 |
| Pitch | 0.200" (5.08mm) |
| Header Orientation | - |
| Plug Wire Entry | 90° |
| Termination Style | Screw - Rising Cage Clamp |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 12A |
| Voltage - IEC | 250 V |
| Current - UL | - |
| Voltage - UL | - |
| Wire Gauge or Range - AWG | 12-30 AWG |
| Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Color | Black |
| Operating Temperature | - |
| Contact Mating Finish | Tin |
| Features | Mating Flange, Retention Latches (Wire Side) |
Submit your RFQ for 1921832 and get a quote within 24 hours.
