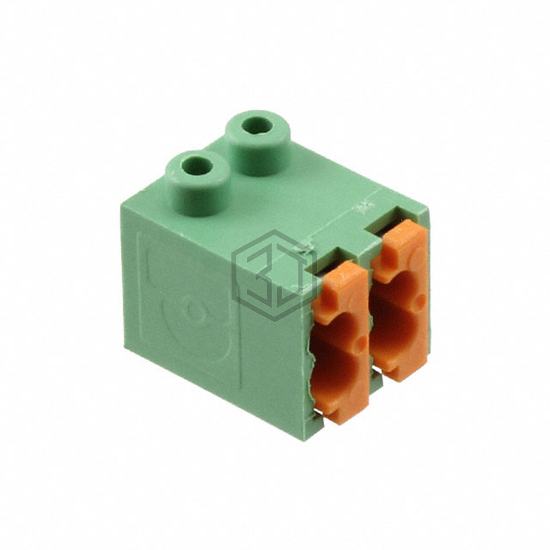

TERM BLOCK PLUG 2POS 90DEG 3.5MM
1913921 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by Phoenix Contact. TERM BLOCK PLUG 2POS 90DEG 3.5MM. Key specifications: mounting type Free Hanging (In-Line), color Green, termination style Screwless - Spring Cage, Tension Clamp, number of positions 2.
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug for Unshrouded Header |
| Number of Positions | 2 |
| Positions Per Level | 2 |
| Number of Levels | 1 |
| Pitch | 0.138" (3.50mm) |
| Header Orientation | - |
| Plug Wire Entry | 90° |
| Termination Style | Screwless - Spring Cage, Tension Clamp |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 4A |
| Voltage - IEC | 250 V |
| Current - UL | 4 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 20-28 AWG |
| Wire Gauge or Range - mm² | 0.12-0.5mm² |
| Color | Green |
| Operating Temperature | - |
| Contact Mating Finish | Tin |
| Features | - |
Submit your RFQ for 1913921 and get a quote within 24 hours.
