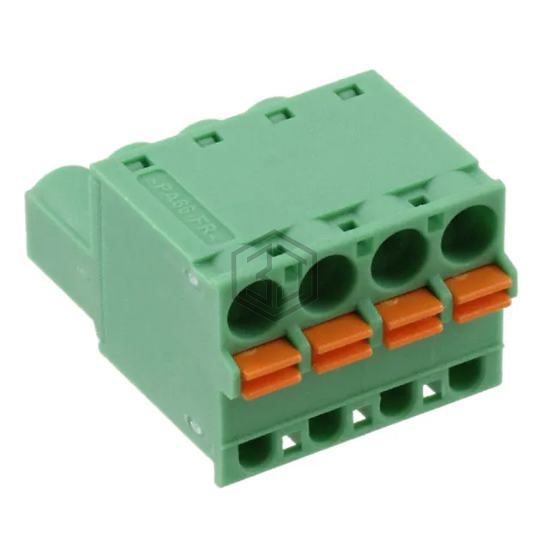

TERM BLOCK PLUG 4POS STR 5MM
1909236 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by Phoenix Contact. TERM BLOCK PLUG 4POS STR 5MM. Key specifications: mounting type Free Hanging (In-Line), color Green, termination style Screwless - Leg Spring, Push-In Spring, number of positions 4.
In Stock: 45
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 4 |
| Positions Per Level | 4 |
| Number of Levels | 1 |
| Pitch | 0.197" (5.00mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 12A |
| Voltage - IEC | 630 V |
| Current - UL | 10 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 12-26 AWG |
| Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Color | Green |
| Operating Temperature | - |
| Contact Mating Finish | Tin |
| Features | Retention Latches (Non-Wire Side) |
