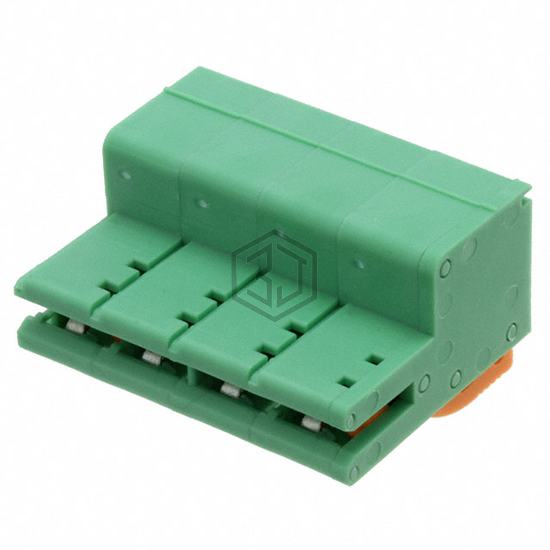

TERM BLOCK PLUG 4POS STR 7.5MM
1883161 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by Phoenix Contact. TERM BLOCK PLUG 4POS STR 7.5MM. Key specifications: mounting type Free Hanging (In-Line), color Green, termination style Screwless - Spring Cage, Tension Clamp, number of positions 4.
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Card Edge |
| Number of Positions | 4 |
| Positions Per Level | 4 |
| Number of Levels | 1 |
| Pitch | 0.295" (7.50mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screwless - Spring Cage, Tension Clamp |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 10A |
| Voltage - IEC | 1 kV |
| Current - UL | 10 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 14-26 AWG |
| Wire Gauge or Range - mm² | 0.2-1.5mm² |
| Color | Green |
| Operating Temperature | - |
| Contact Mating Finish | Tin |
| Features | - |
