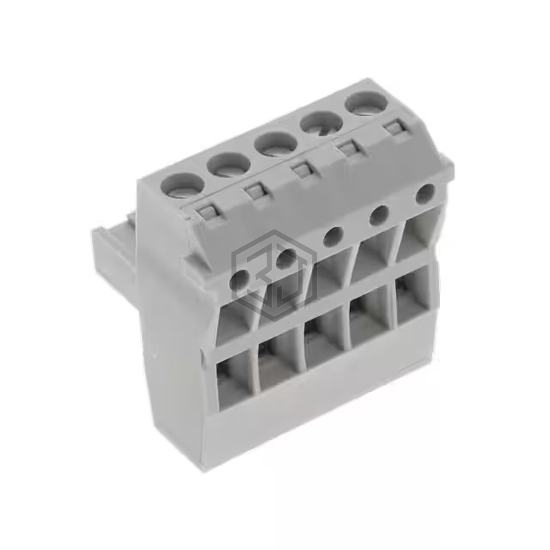

TERM BLOCK PLUG 5POS STR 5.08MM
1853191 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by Phoenix Contact. TERM BLOCK PLUG 5POS STR 5.08MM. Key specifications: mounting type Free Hanging (In-Line), color Gray, termination style Screw - Rising Cage Clamp, number of positions 5.
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 5 |
| Positions Per Level | 5 (Mate), 10 (Input) |
| Number of Levels | 1 (Mate), 2 (Input) |
| Pitch | 0.200" (5.08mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screw - Rising Cage Clamp |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 12A |
| Voltage - IEC | 630 V |
| Current - UL | 15 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 12-30 AWG |
| Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Color | Gray |
| Operating Temperature | - |
| Contact Mating Finish | Gold |
| Features | Retention Latches (Non-Wire Side) |
Submit your RFQ for 1853191 and get a quote within 24 hours.
