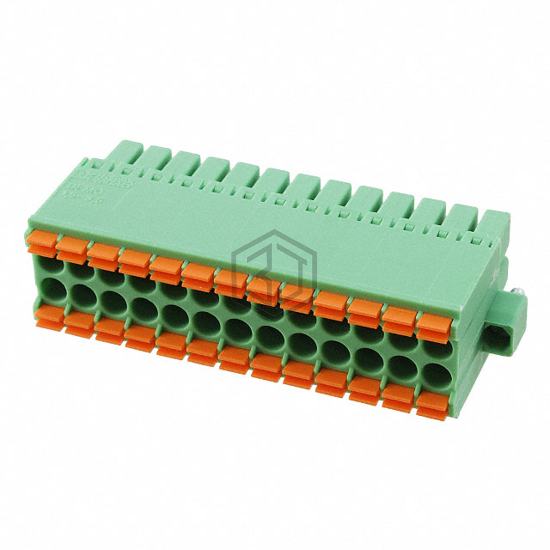

TERM BLOCK PLUG 26POS STR 3.5MM
1790409 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by Phoenix Contact. TERM BLOCK PLUG 26POS STR 3.5MM. Key specifications: mounting type Free Hanging (In-Line), color Green, termination style Screwless - Push-In Spring, number of positions 26.
In Stock: 5,212
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 26 |
| Positions Per Level | 13 |
| Number of Levels | 2 |
| Pitch | 0.138" (3.50mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screwless - Push-In Spring |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 8A |
| Voltage - IEC | 250 V |
| Current - UL | 8 A |
| Voltage - UL | 150 V |
| Wire Gauge or Range - AWG | 16-24 AWG |
| Wire Gauge or Range - mm² | 0.2-1.5mm² |
| Color | Green |
| Operating Temperature | - |
| Contact Mating Finish | Tin |
| Features | Mating Flange |
