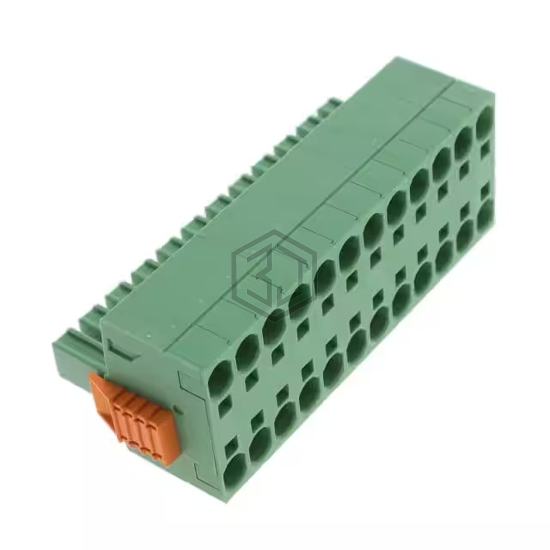

TERM BLOCK PLUG 12POS STR 5MM
1765515 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by Phoenix Contact. TERM BLOCK PLUG 12POS STR 5MM. Key specifications: mounting type Free Hanging (In-Line), color Green, termination style Screwless - Push-In Spring, number of positions 12.
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 12 |
| Positions Per Level | 12 (Mate), 24 (Input) |
| Number of Levels | 1 (Mate), 2 (Input) |
| Pitch | 0.197" (5.00mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screwless - Push-In Spring |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 41A |
| Voltage - IEC | 1 kV |
| Current - UL | 31 A |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG | 8-24 AWG |
| Wire Gauge or Range - mm² | 0.2-10mm² |
| Color | Green |
| Operating Temperature | - |
| Contact Mating Finish | Tin |
| Features | Latch Lock |
Submit your RFQ for 1765515 and get a quote within 24 hours.
